FX120/FX120 Lite NewNow with native 1/2.5/5/10GBASE-T port

PON Analyzer and Multi-Gig Service Test Set/PON Analyzer

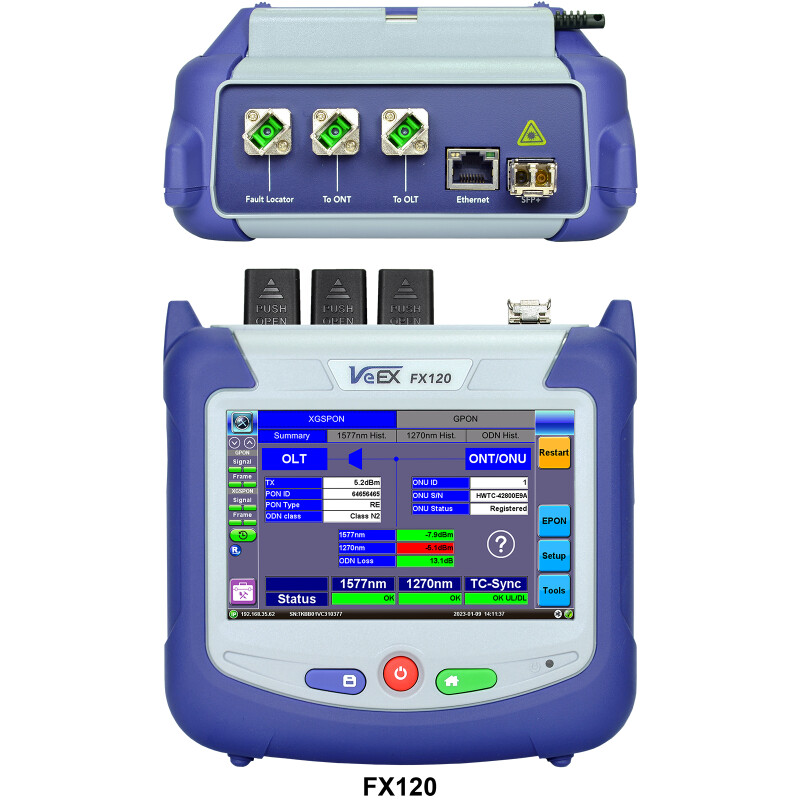

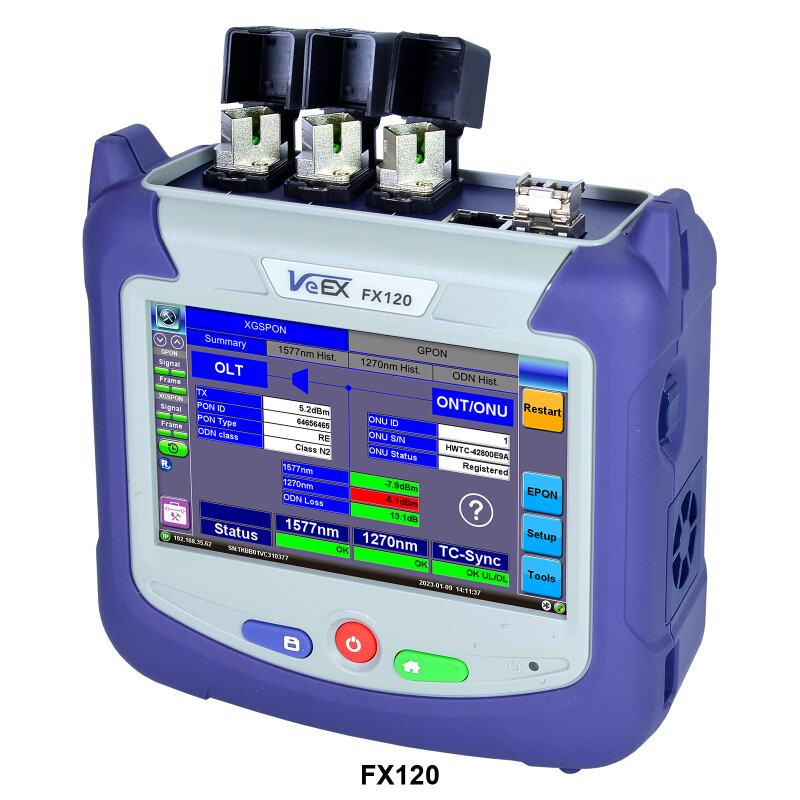

The Next Generation FX120 is an all-in-one advanced PON analyzer with a native RJ45 port and an SFP+ cage to support Layer 4+ testing. Ideal for service technicians tasked with service activation and resolving complaints, the FX120 monitors activation process by displaying downstream/upstream power levels as well as OLT/ONT IDs and status and TC-Sync. Certify QoE using optional Speed Test and V-PERF to check internet connectivity and speed up to 10 Gbps. Optional end of fiber detection feature allows technicians to check drop cables length before testing.

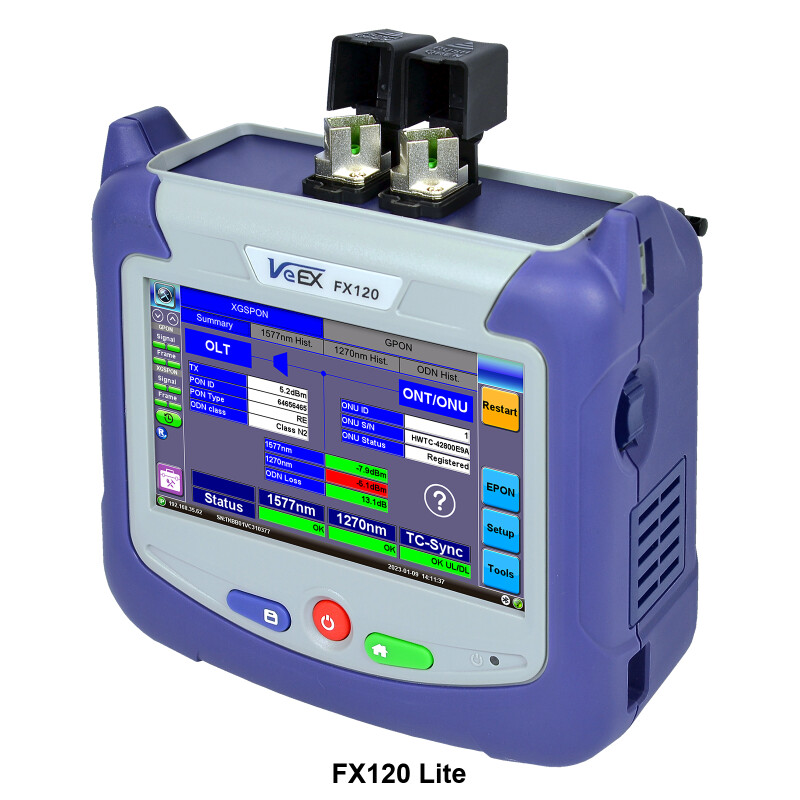

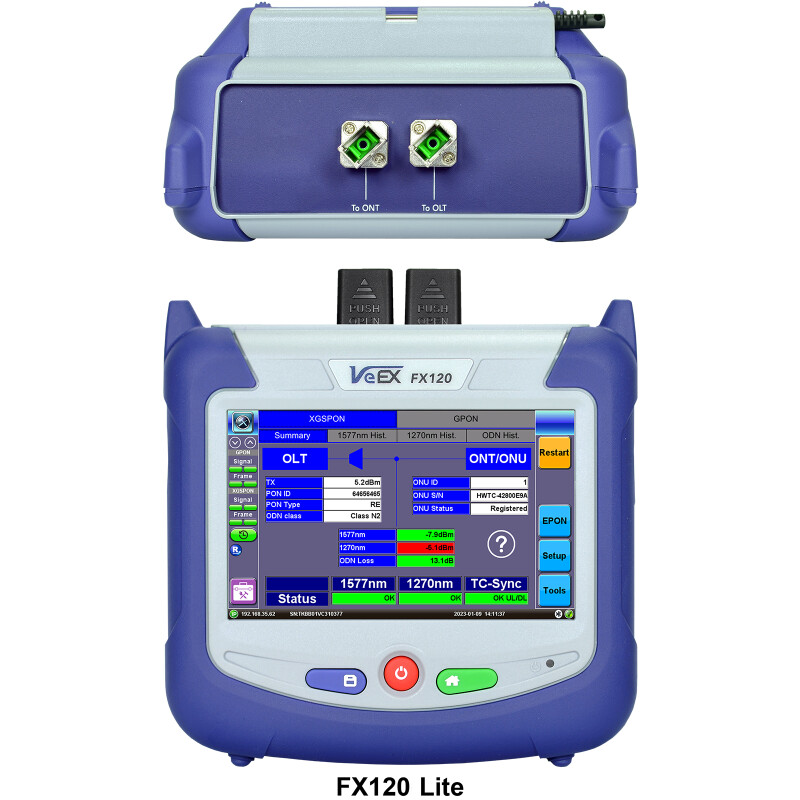

For technicians that don’t require multi-gigabit service testing, but still need to verify signal levels and connections, simply go with VeEX’s new FX120 Lite PON Analyzer. Keeping the simplicity of a power meter but including advanced PON analysis, the FX120 Lite gets the job done quickly and efficiently.

Next Generation FX120 Only

  • Layer 4+ Test option including V-TEST, V-PERF, and V-FTP up to 10GE; SFP+ cage for additional test options
  • Fault Locator – end of fiber detection (option)

Product Highlights

  • Compatible with GPON, XG(S)-PON, and EPON networks
  • Pass/Fail ITU-T thresholds enable fast, efficient, and consistent turn-up of services.
  • Simple and intuitive user interface
  • Patent pending NoApp™ QR code capability for faster result transfer
  • Easy report generation and data transfer using R-Server for workflow and results management
  • Test set connectivity via micro-B USB and optional built-in WiFi and Bluetooth® wireless interfaces; USB-A and LAN interfaces available via OTG cables
  • Remote access/control via web browser and VNC® client. Compatible with VeEX EZ Remote collaboration services
  • Field upgradeable or result transfer using USB stick
  • Fiber tool accessory options: OPX-BOXe OTDR, DI- 1000/1000MPO/3000 Fiber Scope and FX40/45/80 series OPM
  • Fast boot and ready to test in <60 seconds
  • Field replaceable Li-Ion battery pack with >12 hour autonomy
  • 5-inch LCD color touch screen
  • Rugged and compact form factor

Parameter | Product FX120 XGS-PON FX120 Lite XGS-PON
Through-PON meter
G-PON 1490 nm DS / 1310 nm US level
XGS-PON 1577 nm DS / 1270 nm US level
EPON 1490 nm DS / 1310 nm US level option
1550 nm RF video option
ODN Link Loss
PLOAM DS Capture/Decode
XGS-PLOAM DS Capture/Decode
Active G-PON ONU List
Active XGS-PON ONU List
Active EPON ONU List
Advanced Splitter and Distribution Cabinet Analysis - option
Complete Layer 4+ Testing: V-TEST, V-PERF, V-FTP option
End of Fiber Detection option
Patent Pending NoApp™ QR Code option
R-Server option
FX120 02.05.0014 Download

Attention: DO NOT downgrade the software version currently installed in your test platform or module, unless specifically instructed by a VeEX Customer Care/Support agent. Your new test set may have been shipped with a newer version. For software upgrades, please check the current version(s) on your test set to confirm that the software posted here is a newer version and carefully read the Release Notes for the recommended platform versions.

Specification Sheet
FX120FX120 Lite
Technical Notes
Request a Demo Contact Sales
Request a Quote Financing
Register a Product Locate a Partner

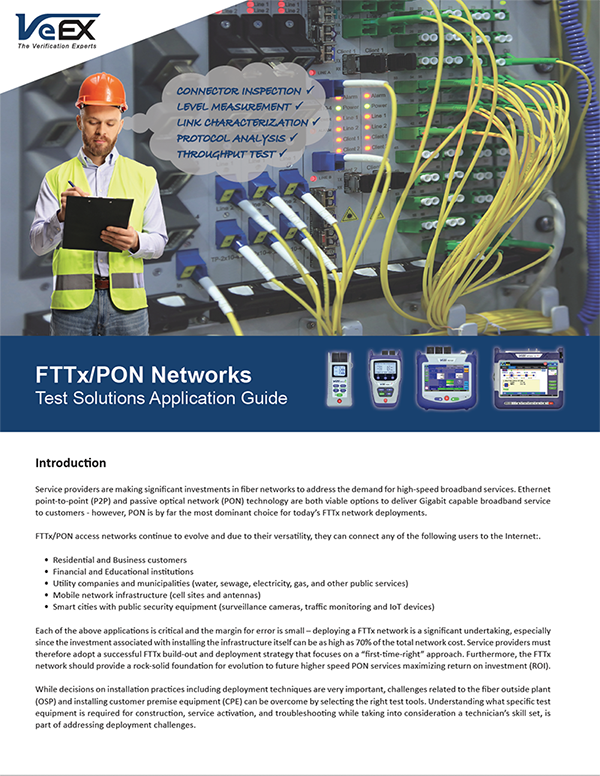

FTTx/PON Networks Test Solutions Application Guide

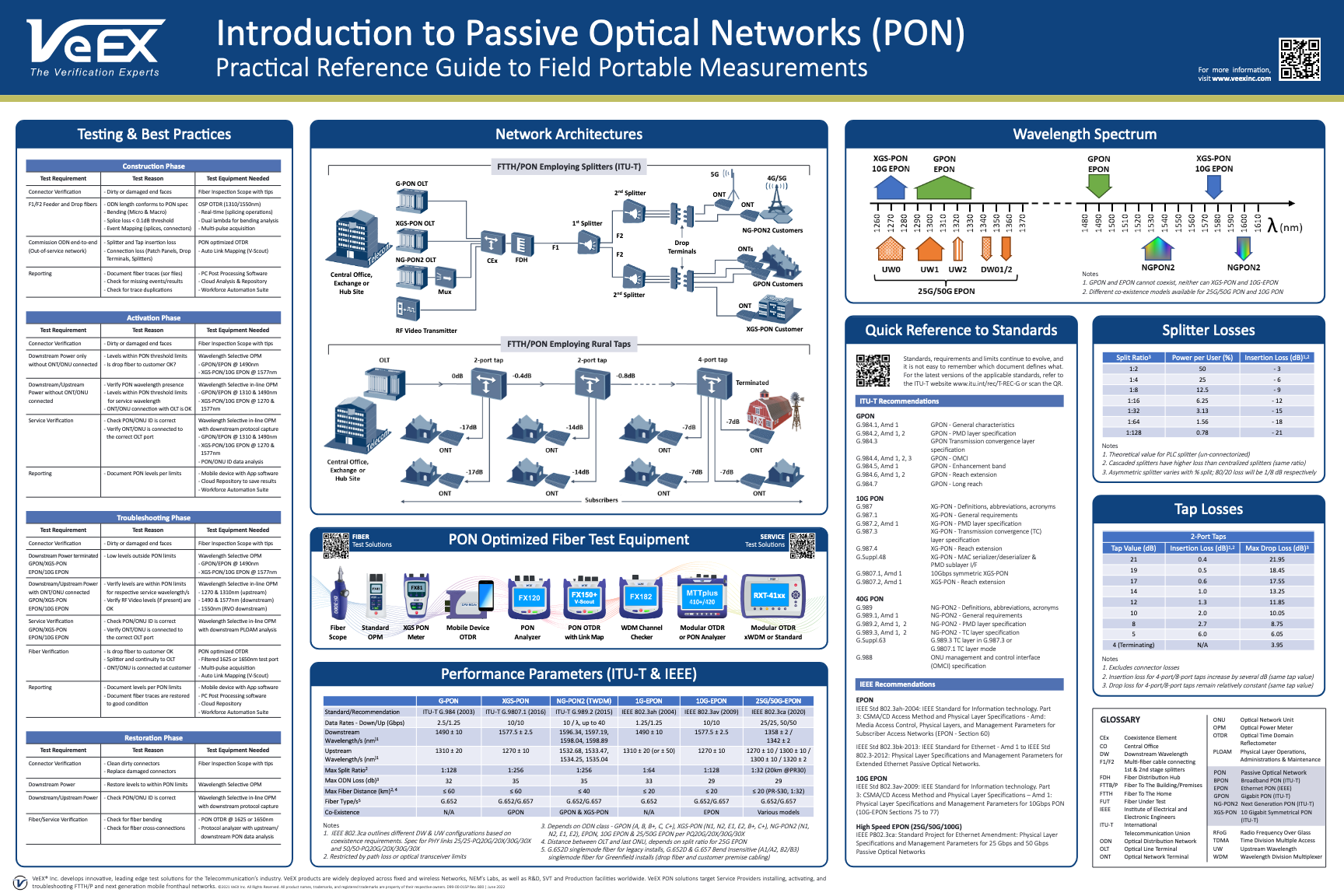

Introduction to
Passive Optical Networks (PON) Poster

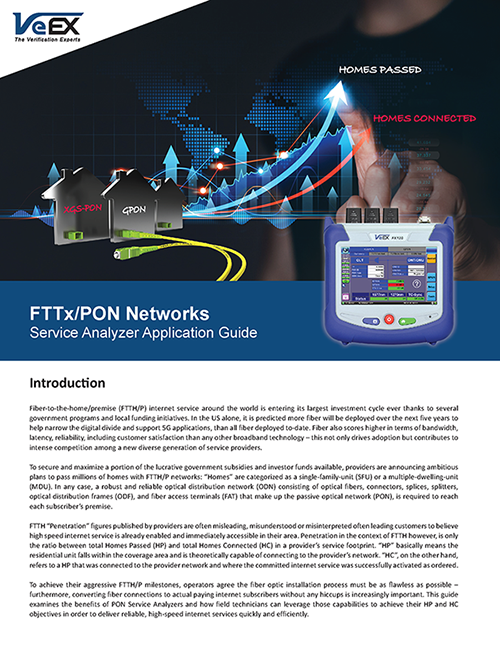

FTTx/PON Service Analyzer Application Guide
